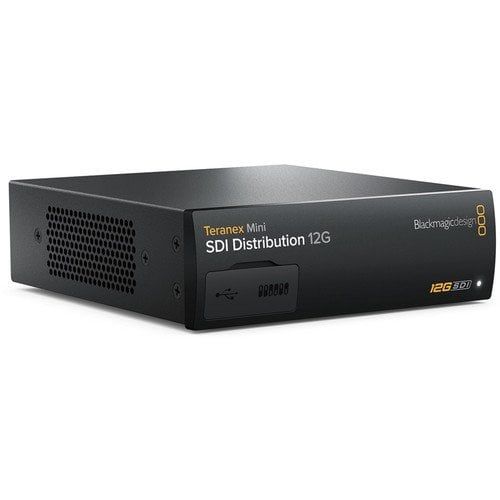

Blackmagic Design Teranex Mini SDI 12G Distribution

Blackmagic Design Teranex Mini SDI 12G Distribution     Tek bir SDI video girişini sekiz SDI çıkışına kadar dağıtım yapın. 2160p60'a kadar tüm SD, HD ve Ultra HD formatları arasında çeviricinin otomatik olarak değişim yapmasına olanak veren tam SDI yeniden saat ayarı ile en son çoklu hız 12G-SDI bağlantı özelliklerini içermektedir. Tek bir SDI sinyalin monitör, switcher ve kodlayıcı gibi çoklu cihazlara dağıtımı için mükemmeldir.   Bağlantılar SDI Video Input 1 x 12G-SDI SD/HD/2K/4K auto switching. SDI Video Output 8 x 12G-SDI automatically matches the SD/HD/2K/4K 12G-SDI input Multi Rate Support Automatic switching between SD/HD/2K and 4K Updates and Configuration USB or Ethernet Re-Clocking Yes Standards SD Format Support 525i29.97 NTSC, 625i25 PAL HD Format Support 720p50, 59.94, 60 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080PsF23.98, 24 1080i50, 59.94, 60 2K Format Support 1080p23.98, 24, 25 1080PsF23.98, 24, 25 Ultra HD Format Support 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60. 4K Format Support 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30. SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10 SDI Video Rates SDI video Bağlantılar are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI. SDI Video Sampling 4:2:2 and 4:4:4 SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. SDI Color Space YUV & RGB Operating Systems Mac Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later. Windows Windows 8.1 or Windows 10. Setting Control Basic Settings Control Mini Switches, USB and Ethernet via free software utility Optional Front Panel Control Front mounted Smart Panel with LCD, rotary knob and six settings buttons Power Requirements Power Supply 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input. Power Over Ethernet Can be powered via 48V DC using PoE+ (power over ethernet). Power Consumption 16 Watts Operational Voltage Range 90 - 240V AC Physical Specifications Width 5.51 in Height 1.75 in Depth 6.69 in Weight 1.28 lb Environmental Specifications Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
